The create-custombutton operation is used to create custom buttons.

Request Packet Structure

A request XML packet creating a custom button includes the create-custombutton operation node:

<packet>
<ui>
   <create-custombutton>
...
   </create-custombutton>
</ui>
</packet>

The create-custombutton node graphical representation is as follows:

image 48903

Note: The interactive schema navigator for all request packets is available here: http://plesk.github.io/api-schemas/1.6.8.0/agent_input.svg.

To create a custom button for web applications, set values for the following nodes:

  • The owner node is required. It specifies users who can manage the custom button. For more information, refer to the Owner section. Data type: CBOwner (plesk_custom_button.xsd) .
  • The properties node is required. It specifies behavior of the button. For details, refer to the Properties section. Data type: CBProps (plesk_custom_button.xsd) .
  • The uri-components node is optional. It specifies parameters that are sent via the GET method to external web applications when clicking the button. Data type: CBUrlComponents (plesk_custom_button.xsd) .

Note: When creating request packets, put nodes and elements in the order they follow in the packet structure.

Response Packet Structure

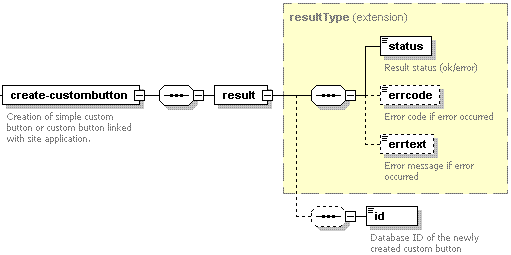

The create-custombutton node of the output XML packet is structured as follows:

image 48906

Note: The interactive schema navigator for all response packets is available here: http://plesk.github.io/api-schemas/1.6.8.0/agent_output.svg.

  • The result node is required. It wraps the response retrieved from the server. Data type: resultType (common.xsd).
  • The status node is required. It specifies the execution status of the operation. Data type: string. Allowed values: ok | error.
  • The errcode node is optional. Is returns the error code if the operation fails. Data type: integer.
  • The errtext node is optional. It returns the error message if the operation fails. Data type: string.
  • The id node is optional. If the operation succeeds, it returns the ID of the created custom button. Data type: integer.

Samples

The following packet creates a custom button and adds it to the custom buttons list of the customer with ID 12.

<packet version="1.6.3.0">
<ui>
   <create-custombutton>
         <owner>
            <customer-id>12</customer-id>
         </owner>
      <properties>
         <place>client</place>
         <url>http://example.com</url>
         <text>Example site</text>
      </properties>
   </create-custombutton>
</ui>
</packet>

Response:

<packet version="1.6.3.0">
<ui>
   <create-custombutton>
         <result>
            <status>ok</status>
            <id>4</id>
         </result>
   </create-custombutton>
</ui>
</packet>
