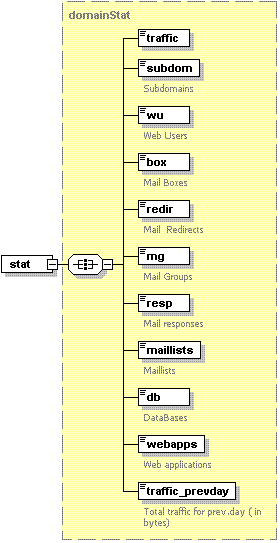

Statistics settings can be received from Plesk server in the get response packet. The stat node of the get response packet is defined by the domainStat data type (plesk_domain.xsd) and contains a collection of statistics data for the specified subscriptions. This node is structured as follows:


  • The traffic node is required. It returns the subscription traffic (in bytes) spent during the current month. Data type: size (unsignedLong).
  • The subdom node is required. It holds the number of subdomains created. Data type: unsignedInt.
  • The wu node is required. It holds the number of web users created. Data type: unsignedInt.
  • The box node is required. It holds the number of email boxes created. Data type: unsignedInt.
  • The redir node is required. It returns the number of redirects created. Data type: unsignedInt.
  • The mg node is required. It returns the number of mailing groups created. Data type: unsignedInt.
  • The resp node is required. It returns the number of autoresponders created. Data type: unsignedInt.
  • The maillists node is required. It returns the number of mailing lists created. Data type: unsignedInt.
  • The db node is required. It holds the number of databases created. Data type: unsignedInt.
  • The webapps node is required. It returns the number of Java applications installed. Data type: unsignedInt.
  • The traffic_prevday node is required. It returns the subscription traffic (in bytes) spent during the previous day. Data type: unsignedLong.

The following response packet returns statistics settings for two filtered subscriptions (ID 2435 and ID 2567):

<packet version="1.6.3.0">
<webspace>
<get>
   <result>
      <status>ok</status>
      <filter-id>2435</filter-id>
      <id>2435</id>
      <data>
          <stat>
             <traffic>12458966221478885</traffic>
             <subdom>12</subdom>
             <wu>134</wu>
             <box>1024</box>
             <redir>2</redir>
             <mg>16</mg>
             <resp>124</resp>
             <maillists>4<maillists>
             <db></db>
             <webapps>8</webapps>
             <traffic_prevday>15241632184739856</traffic_prevday>
          </stat>
      </data>
   </result>
   <result>
      <status>ok</status>
      <filter-id>2567</filter-id>
      <id>2567</id>
      <data>
          <stat>
             <traffic>5896615637124</traffic>
             <subdom>10</subdom>
             <wu>18</wu>
             <box>102</box>
             <redir></redir>
             <mg>11</mg>
             <resp>12</resp>
             <maillists>6<maillists>
             <db>2</db>
             <webapps>5</webapps>
             <traffic_prevday>152562874868127</traffic_prevday>
          </stat>
      </data>
   </result>
</get>
</webspace>
</packet>
