The get-custombutton operation is used to retrieve custom button settings.

Request Packet Structure

A request XML packet retrieving a custom button settings includes the get-custombutton operation node:

<packet>
    <ui>
        <get-custombutton>
            ...
        </get-custombutton>
    </ui>
</packet>

The get-custombutton graphical representation is as follows:

image 48936

Note

The interactive schema navigator for all request packets is available here: http://plesk.github.io/api-schemas/1.6.9.1/agent_input.svg.

  • The filter node is required. It specifies the filtering rule. For more information, refer to the Available Filters section. Data type: customButtonFilter (ui_input.xsd) .

Response Packet Structure

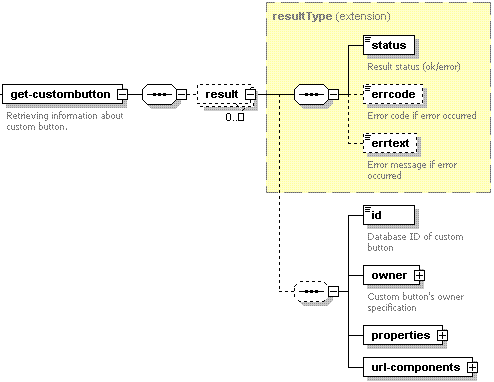

The get-custombutton node of the output XML packet is structured as follows:

image 48948

Note

The interactive schema navigator for all response packets is available here: http://plesk.github.io/api-schemas/1.6.9.1/agent_output.svg.

  • The result node is required. It wraps the response retrieved from the server. Data type: resultType (common.xsd).

  • The status node is required. It specifies the execution status of the operation. Data type: string. Allowed values: ok | error.

  • The errcode node is optional. Is returns the error code if the operation fails. Data type: integer.

  • The errtext node is optional. It returns the error message if the operation fails. Data type: string.

  • The id node is optional. If the operation succeeds, it returns the ID of the custom button. Data type: integer.

  • The owner node is required. It specifies users who can manage the custom button. For more information, refer to the Owner section. Data type: CBOwner (plesk_custom_button.xsd) .

  • The properties node is required. It specifies behavior of the button. For details, refer to the Properties section. Data type: CBProps (plesk_custom_button.xsd) .

Note

When you retrieve details on the custom button that links to a Web application, and you have not specified values for all required properties nodes, the validation error occurs.

  • The uri-components node is optional. It specifies parameters that are sent via the GET method to external web applications when clicking the button. Data type: CBUrlComponents (plesk_custom_button.xsd) .

Samples

The following packet retrieves settings of custom buttons of the customer with ID 1.

<packet>
    <ui>
        <get-custombutton>
            <filter>
                <owner>
                    <customer-id>1</customer-id>
                </owner>
            </filter>
        </get-custombutton>
    </ui>
</packet>

The following packet retrieves settings of custom button with ID 1.

<packet>
    <ui>
        <get-custombutton>
            <filter>
                <custombutton-id>1</custombutton-id>
            </filter>
        </get-custombutton>
    </ui>
</packet>
