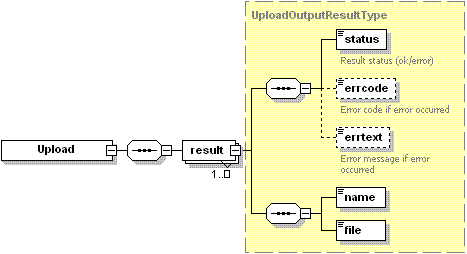

The upload output XML packet is structured as follows:

image 36081

  • result, required

    Wraps the response retrieved from the server. Data type: resultType (common.xsd).

  • status, required

    Specifies the execution status of the operation. Data type: string. Allowed values: ok | error.

  • errcode, required if the operation fails

    Returns the error code. Data type: integer.

  • errtext, required if the operation fails

    Returns the error message. Data type: string.

  • name, required

    Specifies the name of the uploaded file. Data type: string.

  • file, required

    Specifies full name of the created temporary file. Data type: string.

Note: The interactive schema navigator for all request packets is available here: http://plesk.github.io/api-schemas/1.6.8.0/agent_input.svg.
