Response Packet Structure and Samples

The get node of the response packet is structured as follows:

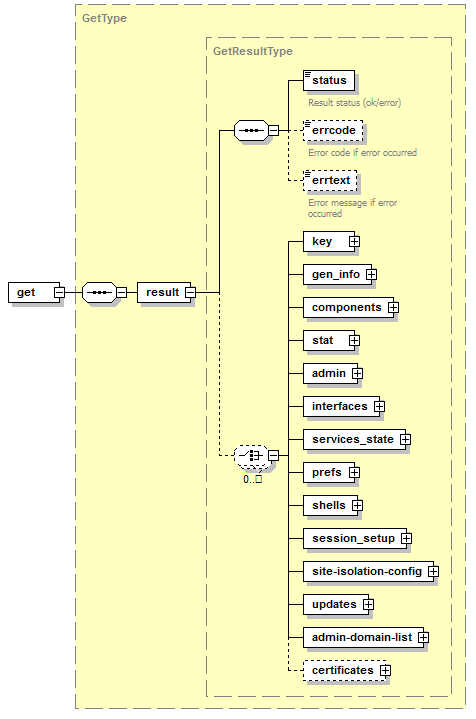

get_response

Note: The interactive schema navigator for all response packets is available here: http://plesk.github.io/api-schemas/1.6.8.0/agent_output.svg.

  • The result node is required. It wraps the result of the get operation. Data type: GetResultType (server_output.xsd).
  • The status node is required. It returns the execution status of the get operation. Data type: string. Allowed values: ok | error.
  • The errcode node is optional. It returns the error code when the get operation fails. Data type: unsignedInt.
  • The errtext node is optional. It returns the error message if the get operation fails. Data type: string.
  • Other nodes are optional, a request packet sent to a server determines if any of them present in the response packet.
    • The key node returns a collection of data describing Plesk license key defining the way Plesk can be used on the server. Data type: keyType (plesk_server.xsd).
    • The gen_info node returns a collection of data describing general server information which is now presented by the server name. Data type: serverGenInfoType (plesk_server.xsd).
    • The components node returns a collection of data describing software components installed on the server and managed by Plesk. Data type: componentsType (plesk_server.xsd).
    • The stat node returns a collection of data describing in detail Plesk and OS versions, and statistics on the server resources usage and Plesk logical objects. Data type: statType (plesk_server.xsd).
    • The admin node returns a collection of data describing Plesk Administrator's personal information. Data type: adminType (plesk_server.xsd). For information on the node structure and response samples, refer to the Administrator Personal Information section.
    • The interfaces node returns a collection of data describing network interfaces supported by the server. Data type: interfacesType (plesk_server.xsd).
    • The services_state node returns a collection of data describing current state of the server services, such as DNS service, FTP service, Mail service and so on. Data type: servicesState (plesk_server.xsd).
    • The prefs node returns a collection of data describing such server preferences as settings of traffic usage statistics and apache restart interval. Data type: serverPrefs (plesk_server.xsd). For information on the node structure and response samples, refer to the Server Preferences section.
    • The shells node returns a collection of data describing shells installed on the server and available for choosing when configuring a site's physical hosting. Data type: ShellsList (server_output.xsd).
    • The session_setup node returns session idle time, namely, the amount of time a session with Plesk should stay valid when no actions are performed. Data type: serverSessionSetup (plesk_server.xsd).
    • The site-isolation-config node returns the server configuration in the site isolation mode. Data type: siteIsolationConfigOutput (server_output.xsd).
    • The admin-domain-list node returns a collection of data describing domains created in Plesk and belonging to the Plesk administrator. Data type: domainListOutputType (domain_list.xsd).
    • The certificates node returns a collection of data describing SSL/TLS certificates used to secure Plesk server and mail server.

Next in this section:

License Key

General Information

Components

Server Statistics

Interfaces

Services State

Shells

Session Settings

Site Isolation Settings

Information about Updates

List of Domains

List of SSL/TLS certificates
